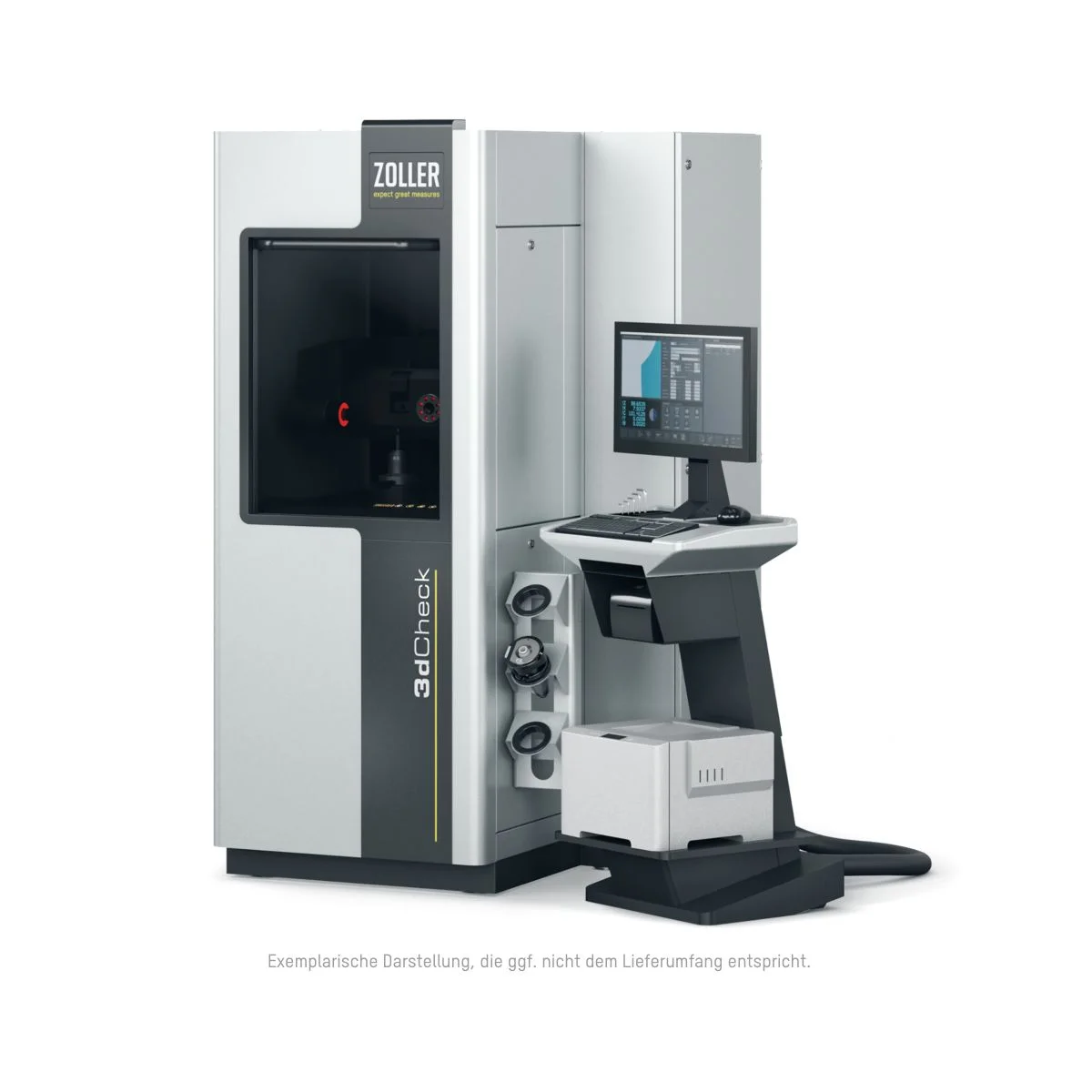

»3dCheck«
- Serial number MTHE-00055
- Year of manufacture: 2023
- 5-axis CNC control
- Measuring range Z = 575 mm
- Measuring range D = 100 mm
- Travel range of CNC Y-axis ± 100 mm
- »Z3dCam« 3D sensor for fully automatic digitization of tool geometries
- Hydro-expansion »spindle ahd« D32 Concentricity 0.002 mm
- Autofocus CNC drive on the C-axis
- HLG hollow encoder for high-resolution C-axis
- »Cockpit« control unit with 24" TFT color monitor with touchscreen
- Tool holders of your choice
