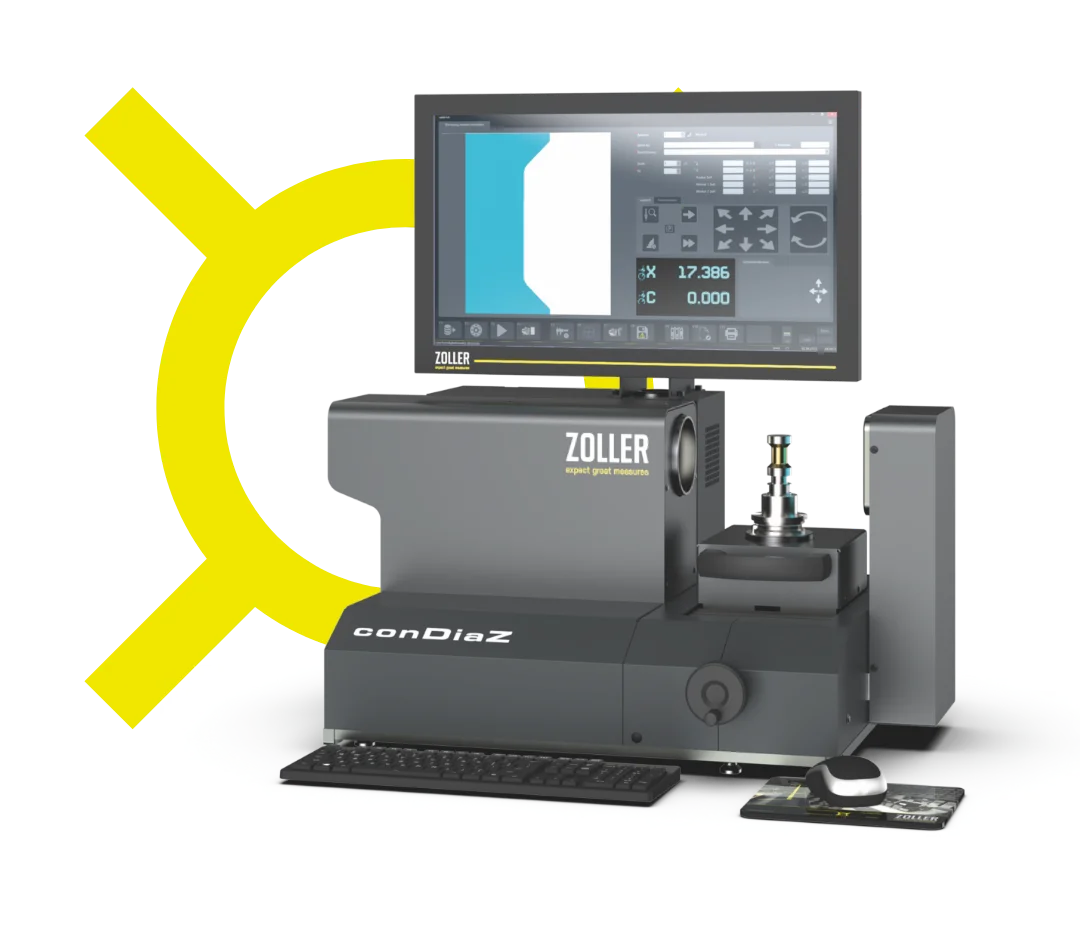

The ZOLLER »conDiaZ« was specially designed for measuring and testing diamond-coated stoneworking tools and enables precise contour detection and the determination of correction values for the machine.
Fast, intuitive operation delivers efficient, operator-independent measurement results with high process reliability and reproducibility. Thanks to compact axes, telecentric large-image optics, perfect software, and workshop-friendly design», conDiaZ« fits perfectly into existing workflows and allows high-precision analysis directly on the tool—fully integrated into the measurement process.
sitting workstation
»conDiaZ« – optional as a seated workstation

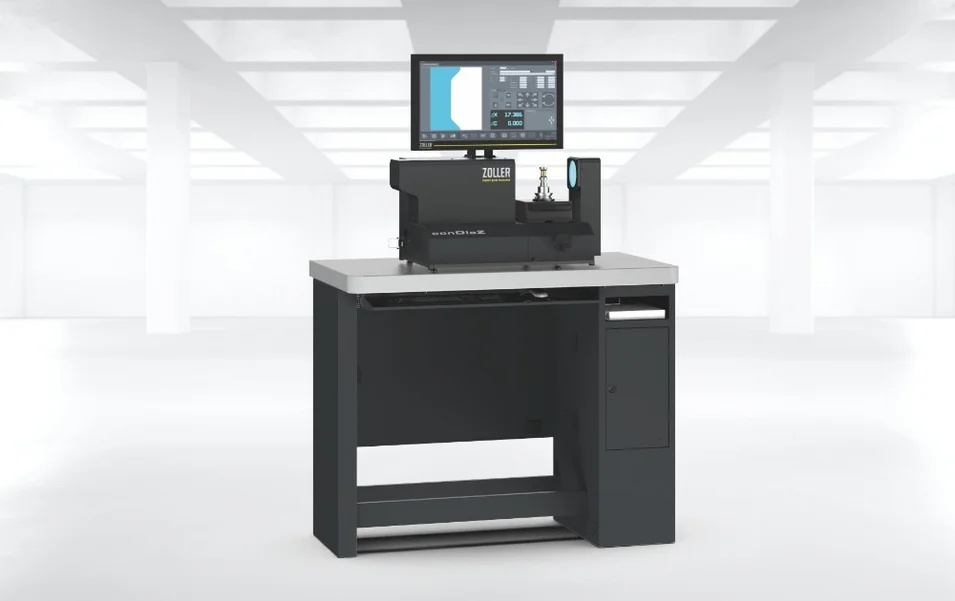

standing workstation
»conDiaZ« – optionally available as a standing workstation

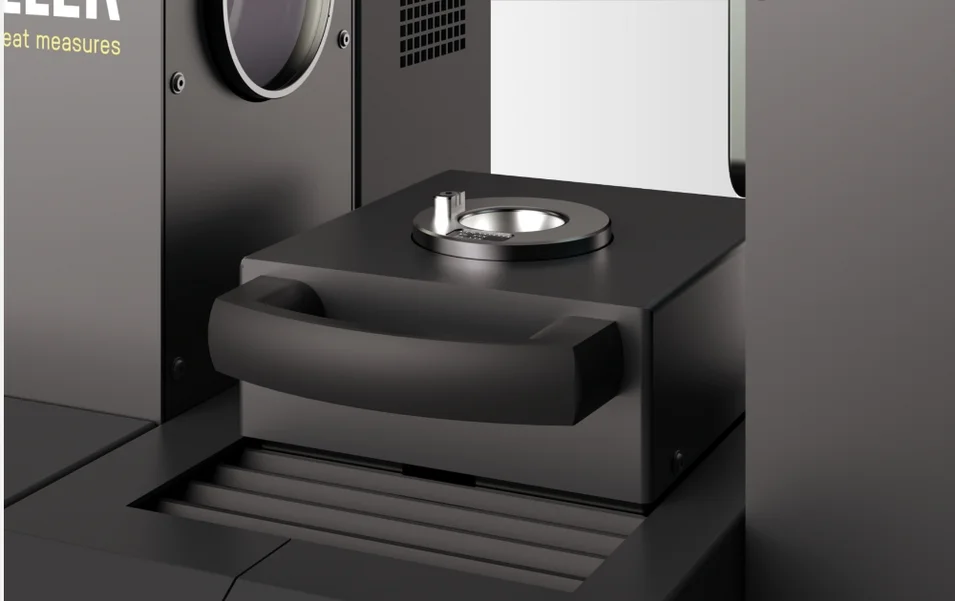

rotary encoder
The SK 40 high-precision spindle with integrated rotary encoder ensures precise, reproducible angular positioning.

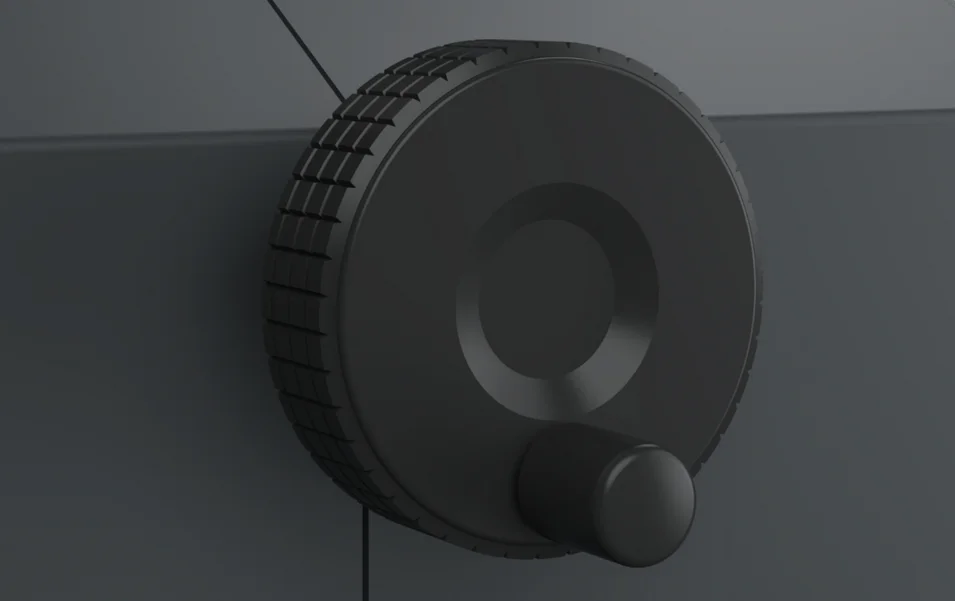

quick adjustment
The manual quick adjustment allows for lightning-fast and convenient positioning of the tool.
The tool can be easily and quickly adjusted to the required position.
Precise contour measurement in seconds
Reproducible results – regardless of the operator
Compact testing station for the workshop
Direct measured values for the machine
